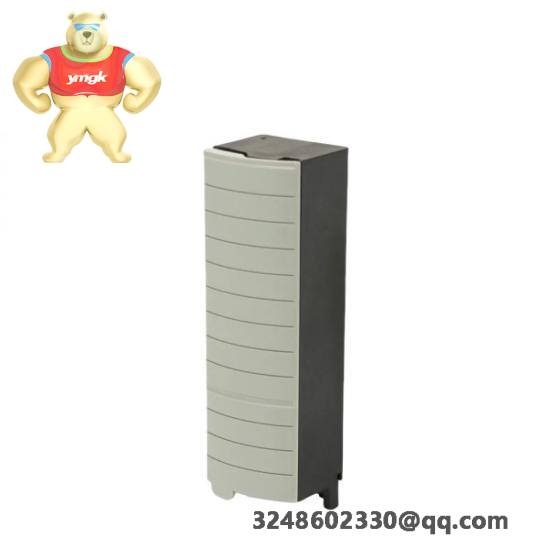

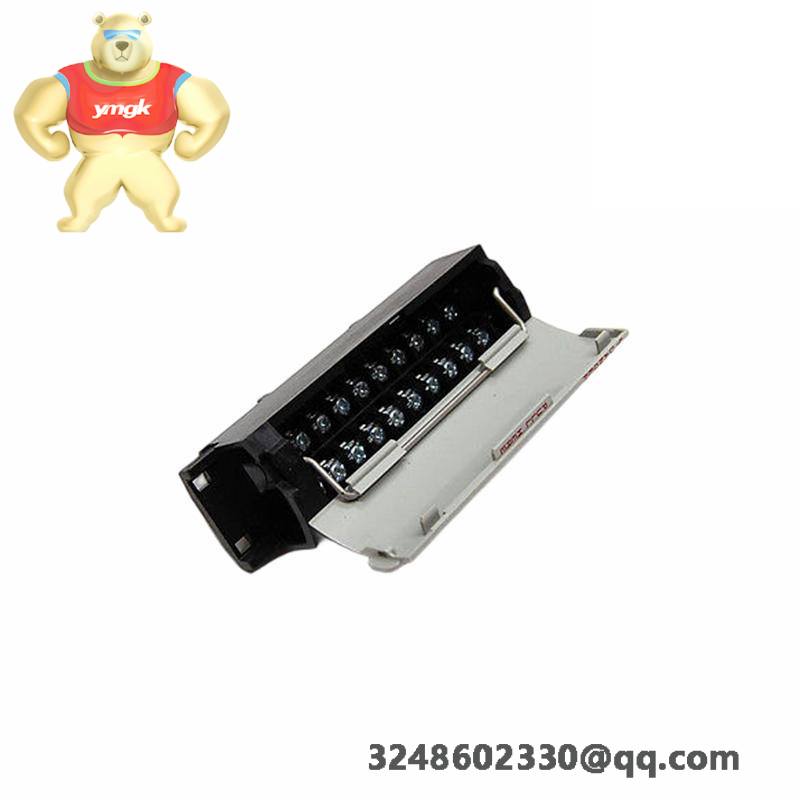

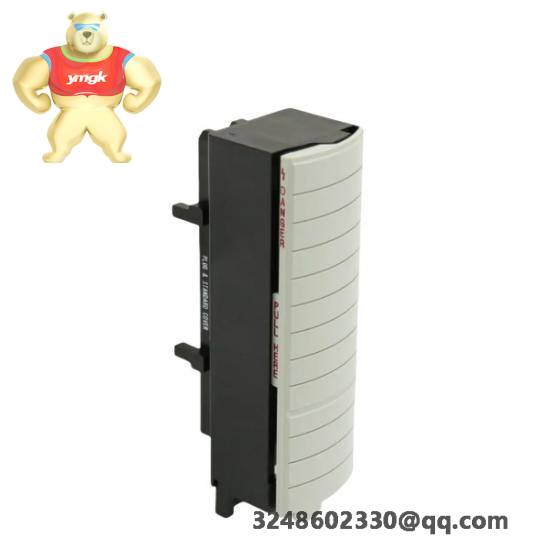

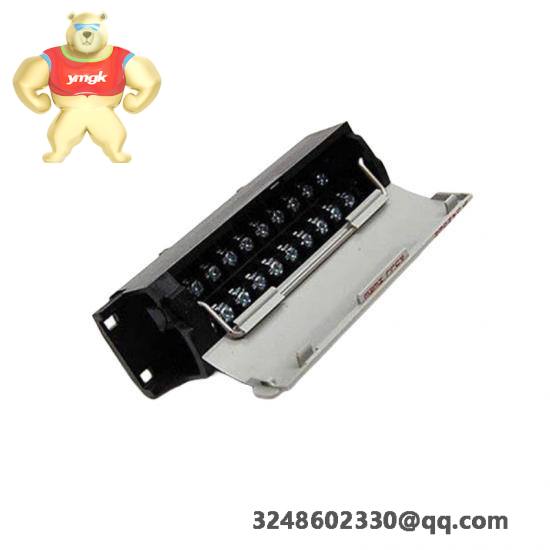

Allen-Bradley 1756-TBNH ControlLogix Terminal Block
The Allen-Bradley 1756-TBNH is a high-performance terminal block module designed for the ControlLogix series of programmable logic controllers (PLCs). It enables easy connection of field devices to the PLC system, ensuring reliable and efficient data transmission.
Series:ControlLogix
Model:1756-TBNH
Type:Terminal Block
Pins:20-Pin
Power Dissipation (Max):6.19 Watts
Wire Size:20 AWG
Dimensions:5.51 x 4.41 x 5.71 inches
Weight:0.3 pounds (0.1 kilograms)
The Allen-Bradley 1756-TBNH is a high-quality terminal block module designed specifically for ControlLogix systems. It ensures safe and reliable connections for wires up to 20 AWG, providing an essential component for efficient power distribution and signal transmission in industrial automation settings.
This terminal block features 20-pin connections which are easy to install and maintain. With a maximum connection power dissipation of 6.19 watts, it can handle substantial loads without overheating. Its compact dimensions and lightweight design make it ideal for space-constrained installations.
Crafted from durable materials, this terminal block is built to withstand the rigorous demands of industrial environments. Its precise pin configuration guarantees optimal connectivity, enhancing system performance and reliability.
Installing the 1756-TBNH is straightforward. Simply connect your wires to the appropriate pins, ensuring secure connections that meet industry standards. Regular maintenance is minimal, thanks to its robust construction.
By choosing the Allen-Bradley 1756-TBNH, you’re investing in a terminal block module that delivers superior performance, reliability, and longevity, making it a cornerstone of any ControlLogix system.
