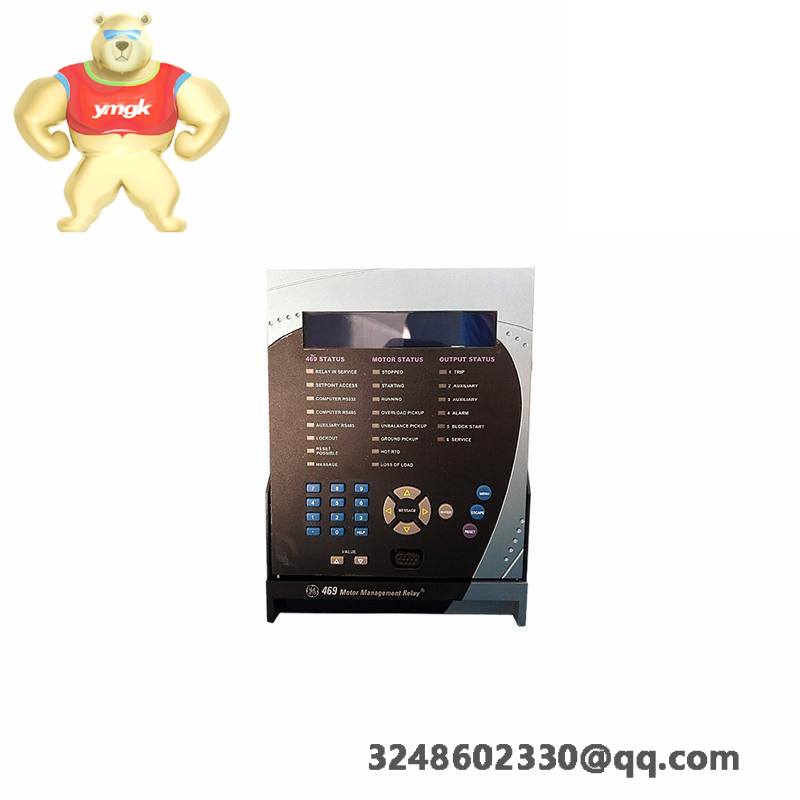

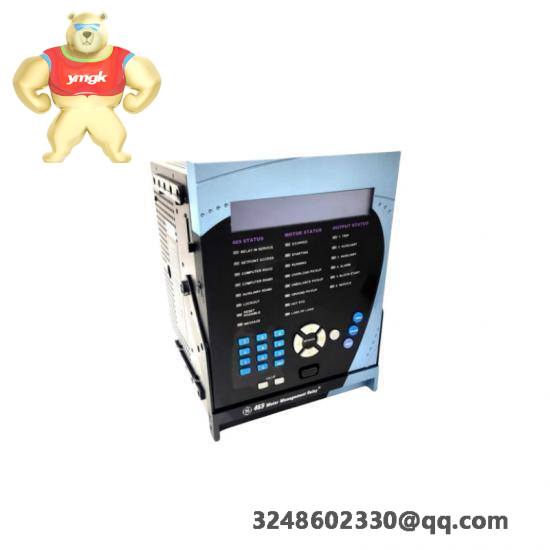

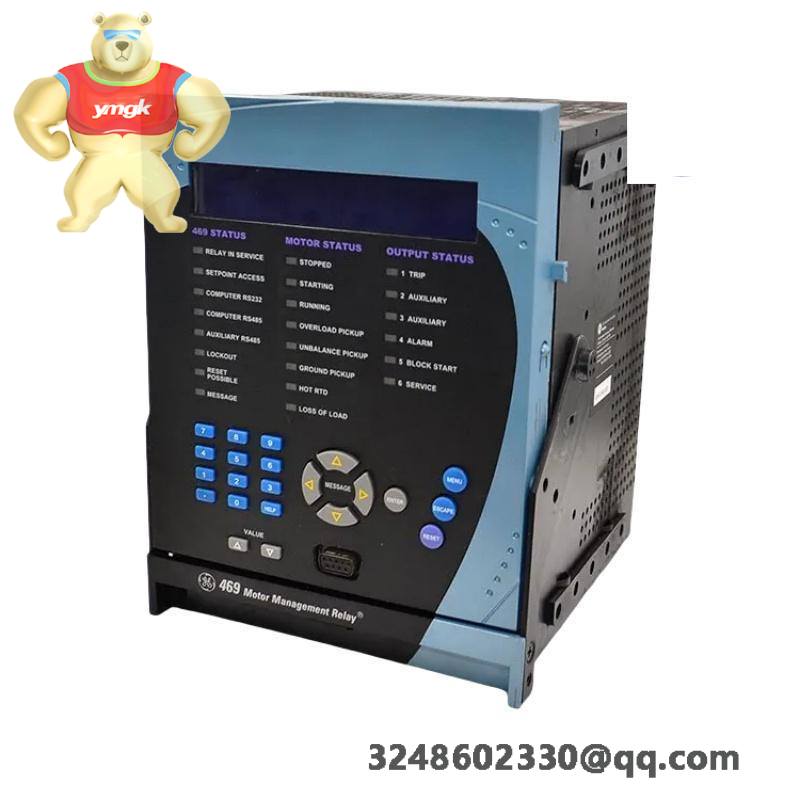

GE 469-P5-HI-A20-E Motor Management Relay, Medium to Large Motor Protection
The GE 469-P5-HI-A20-E is an advanced motor protection relay designed to monitor, control, and safeguard medium to large motors. It provides comprehensive motor management solutions including temperature measurement, current monitoring, and fault detection.
Manufacturer:General Electric (GE)
Model:469-P5-HI-A20-E
Category:Motor Management Relay
Phase Current Inputs:1 A
Phase CT Secondaries:5 A
Control Power:90-300VDC and 70-265VAC at 48-62Hz
Analog Outputs:Four 4-20mA Analog Outputs
Display:Standard Harsh Environment
Enclosure Rating:20-X
Frequency Range:48-62Hz
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2
Current Rating:390/500 mA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Sku:E12940
The GE Multilin 469-P5-HI-A20-E is an advanced Motor Management Relay that enhances motor protection by providing comprehensive monitoring and control functionalities. Designed specifically for industrial environments, this relay can accurately measure current, voltage, and temperature, ensuring optimal motor performance. With multiple RTD inputs, it determines the actual temperature and hottest point for the motor system. These RTDs are made from high-quality materials including 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, which provide precise readings for better motor management.
The device’s rugged construction supports panel or 19-inch rack mounting, making it suitable for various industrial applications. It operates under a wide range of environmental conditions, ensuring reliable performance even in harsh settings. The enhanced front panel display offers clear and easy-to-read information, allowing for quick troubleshooting and maintenance.
With its robust design and versatile functionality, the GE 469-P5-HI-A20-E Motor Management Relay is an essential component for any industrial setup requiring precise motor management and protection.
