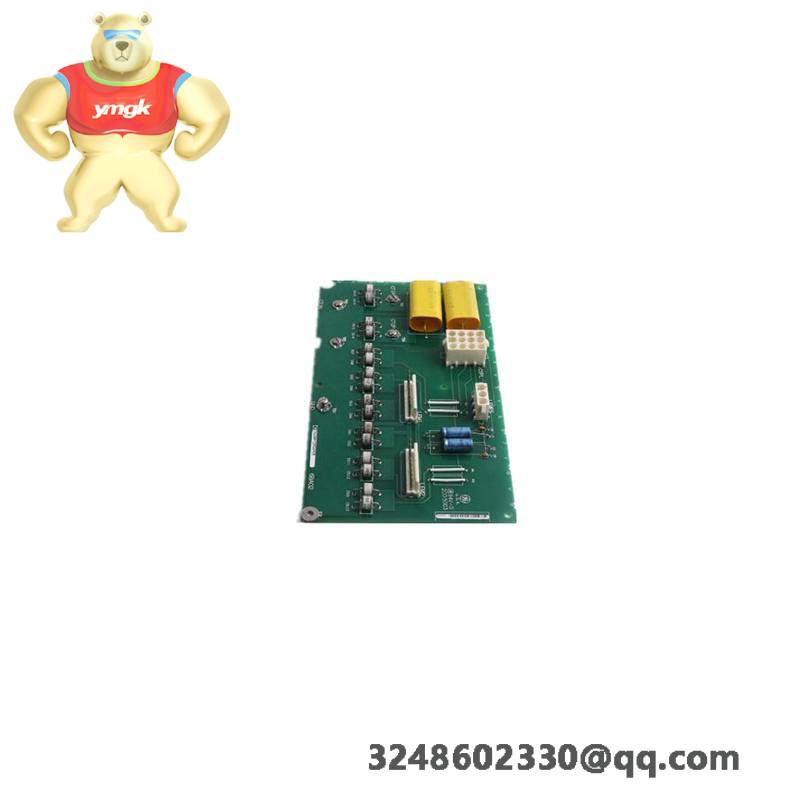

GE DS200FCRLG1AFC Firing Circuit for Mark V Turbine Control Systems
The GE DS200FCRLG1AFC is a specialized firing circuit card designed for General Electric’s Mark V turbine control systems. It ensures precise control and coordination within power generation facilities, enhancing efficiency and reliability.
Manufacturer:General Electric
Series:Mark V
Part Number:DS200FCRLG1AFC
Function:Firing Circuit Control Board
Revisions:1
Assembly Type:Normal Assembly
Connectors:1 34-Pin Connector, 1 9-Pin Connector
Jumpers:27 Jumpers
Features:A-Rated Functional Product Revision
The DS200FCRLG1AFC Firing Circuit Control Board is a specialized component designed for the Mark V Turbine Control System. It is meticulously engineered to provide optimal performance and reliability in industrial applications where precision and control are paramount.
This control board is equipped with 27 bayonet-type connectors, each paired with corresponding pins on the turbine system. Additionally, it features 27 jumpers, a 34-pin connector, and a 9-pin connector, allowing for versatile connections and configurations.
The design of the DS200FCRLG1AFC ensures robust functionality, making it an indispensable part of the Mark V Turbine Control System. Its construction adheres to stringent quality standards, ensuring longevity and consistent performance under demanding conditions.
Installation of the DS200FCRLG1AFC is straightforward and can be performed by qualified technicians following the manufacturer’s guidelines. Regular maintenance and checks are recommended to maintain optimal system operation.
By integrating the DS200FCRLG1AFC into your turbine control system, you can expect enhanced control over the firing sequence, leading to improved efficiency, reduced downtime, and overall better system performance.
