GE DS3800HPIB Phase Module Upper Bridge Uncontrolled Pulse

GE DS3800HPIB Phase Module Upper Bridge Uncontrolled Pulse

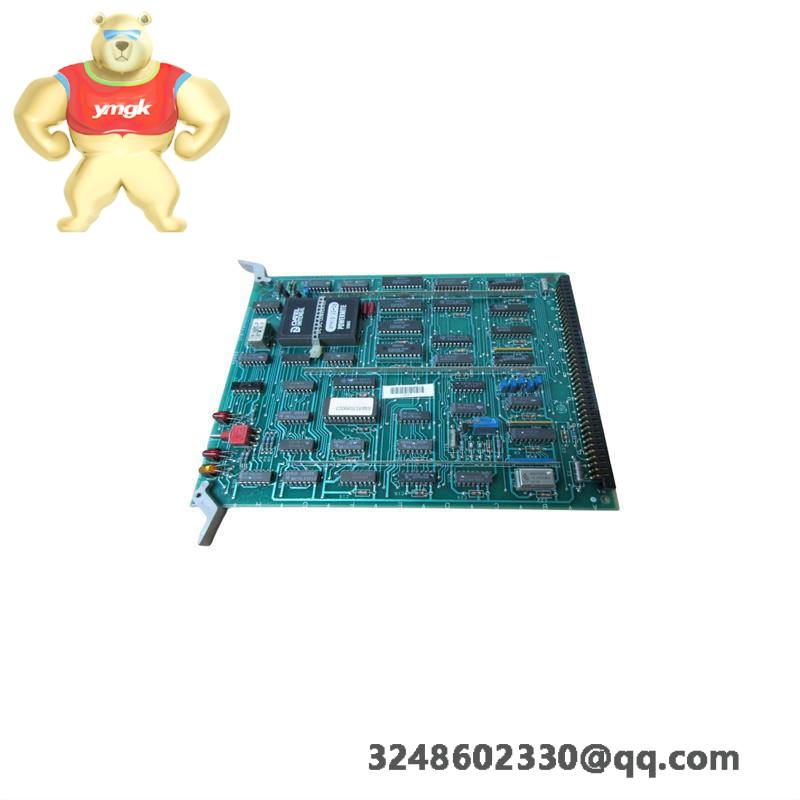

    The GE DS3800HPIB Panel Interface Board is designed for integration into General Electric’s Mark IV turbine control systems. It serves as a crucial interface between control panels and turbine systems, enhancing operational efficiency and reliability.

Model Number:DS3800HPIB

Manufacturer:General Electric

Functionality:Non-Driver Pulse Module

Interface Terminals:Eight connection terminals

Color LEDs:Over thirty-five red LEDs

Toggle Switches:One small toggle switch

Diodes:Around fifty small sky blue diodes and several silver diodes

Memory Storage:Approximately forty-five EPROM and EEPROMs

Mounting:Twelve screw mount positions

Connection Points:Nine separate connection points for wiring harnesses

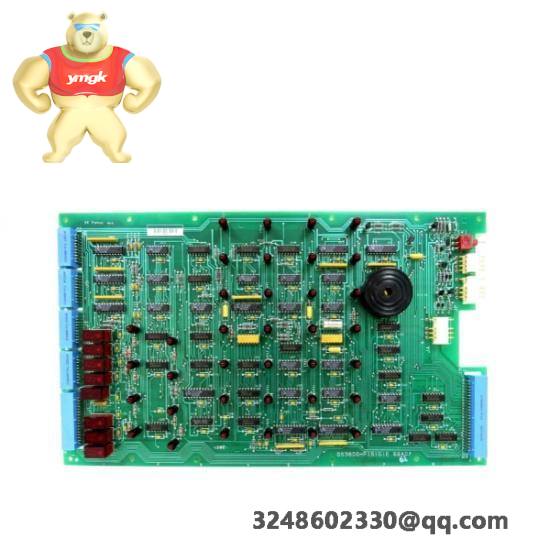

    The DS3800HPIB phase module is meticulously engineered to function as a core component in General Electric’s Speedtronic Mark IV line.

     With eight connection terminals of varying sizes on either side of the board, it provides flexibility and adaptability in various industrial settings.

     The module features approximately fifty small sky blue diodes and one toggle switch, which contribute to its robust design and functionality.

     Twelve screw mounts ensure a secure fit, and nine separate connection points accommodate different wiring harnesses, enhancing its versatility.

     This module is designed for applications requiring precise and reliable performance in industrial control systems.

     It plays a vital role in power electronics, providing uncontrolled pulse signals to manage the upper bridge circuits efficiently.
