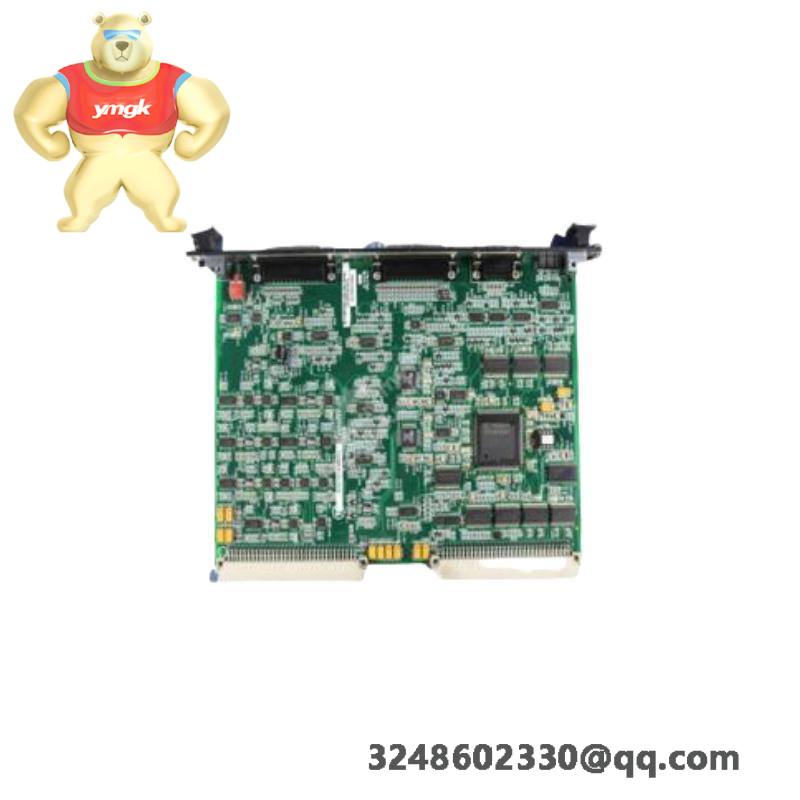

GE DS3800HSCA1G1E High-Level Isolator and Signal Processing Circuit Board

GE DS3800HSCA1G1E High-Level Isolator and Signal Processing Circuit Board

    This high-level isolator or signal processing circuit board is designed by GE for use in turbine control systems and Mark IV modules. It ensures reliable data transmission and signal processing in harsh industrial environments.

Manufacturer:General Electric

Model:DS3800HSCA1G1E

Module Type:High Level Isolator or Signal Processing Circuit Board

Compatibility:GE Mark IV Turbine Control Systems

Dimensions:3.5 inches x 5.5 inches

Weight:0.2 lbs

Operating Temperature Range:-40°C to +85°C

Input Voltage:9V to 30V DC

Output Voltage:5V DC

Signal Processing:Analog to Digital Conversion

Isolation Voltage:1500V AC

Communication Protocol:RS-232/RS-485

    The GE DS3800HSCA1G1E is meticulously engineered for high-level isolation and signal processing within industrial control environments. This circuit board integrates advanced isolation techniques to protect sensitive components from voltage spikes and electromagnetic interference.

    With a robust design capable of withstanding harsh industrial conditions, this board supports a wide input voltage range and operates reliably across a broad temperature spectrum. Its compatibility with GE‘s Mark IV turbine control systems makes it an indispensable component for upgrading existing systems or integrating into new installations.

    Manufactured to stringent quality standards, this board comes with multiple safety certifications including CE, RoHS, and UL, ensuring compliance with international regulatory requirements. Its lightweight yet durable construction facilitates easy installation and maintenance in various industrial settings.

    Designed with precision engineering, this GE DS3800HSCA1G1E board provides excellent signal integrity and processing capabilities, making it a top choice for applications requiring high reliability and performance in industrial automation and control systems.

    For optimal performance and longevity, we recommend following the manufacturer’s guidelines for installation and maintenance. Our support team is available to assist with any inquiries regarding the integration and use of this board in your specific application.
