GE DS3820TIMC – Grid Pattern PCB for Gas Turbine Control

GE DS3820TIMC – Grid Pattern PCB for Gas Turbine Control

    The DS3820TIMC is an integral part of the Mark IV Speedtronic line designed by General Electric. It serves as a critical component in gas turbine controls, offering advanced functionality and reliability for industrial automation systems.

Manufacturer:General Electric

Model:DS3820TIMC

Series:Mark IV

Type:Gas Turbine Control Module

Compatibility:GE Speedtronic Systems

Design:Grid-like Patterned PCB

Dimensions:9.25 x 6.5 x 1.25 inches

Weight:2.3 lbs

Terminal Ports:4 (3 Large Black Boxes, 1 Large Blue Plastic Male Terminal)

    The DS3820TIMC module is designed specifically for use within the GE Speedtronic Gas Turbine Control Systems, providing reliable control and monitoring capabilities essential for efficient turbine operation.

    Constructed with high-quality electronic components, the DS3820TIMC ensures durability and long-lasting performance under demanding industrial conditions.

    The distinctive grid-like pattern on its surface is not just aesthetically pleasing but also enhances its functionality and robustness in harsh environments.

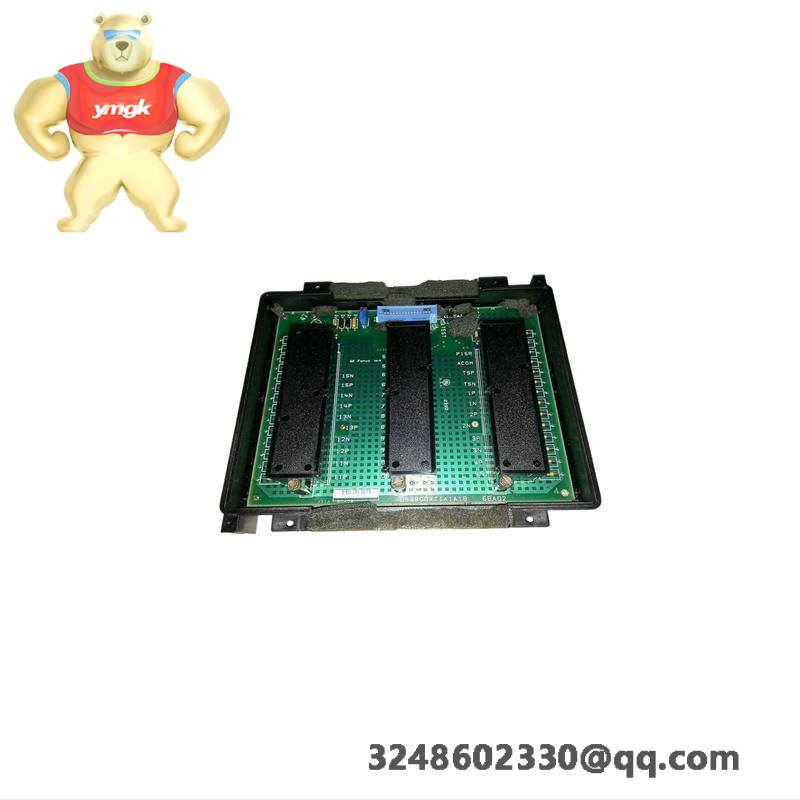

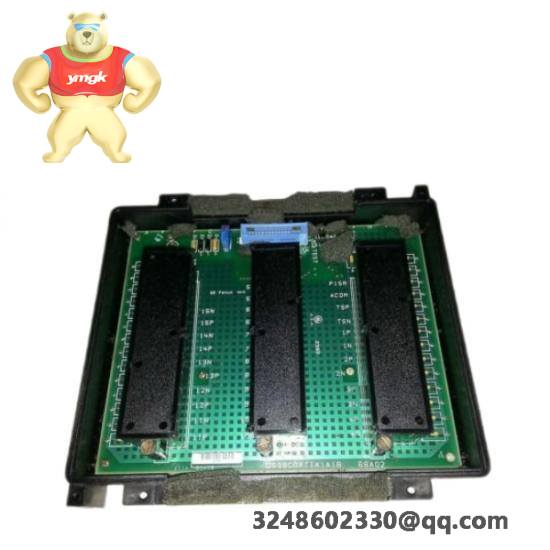

    With three large black boxes each containing twelve small metal pins, and a large blue plastic male terminal with thirty-six small metal pins, the DS3820TIMC offers versatile connectivity options to seamlessly integrate with existing systems.

    Backed by stringent quality control standards, the DS3820TIMC meets CE and RoHS certifications, ensuring safety and environmental compliance.
