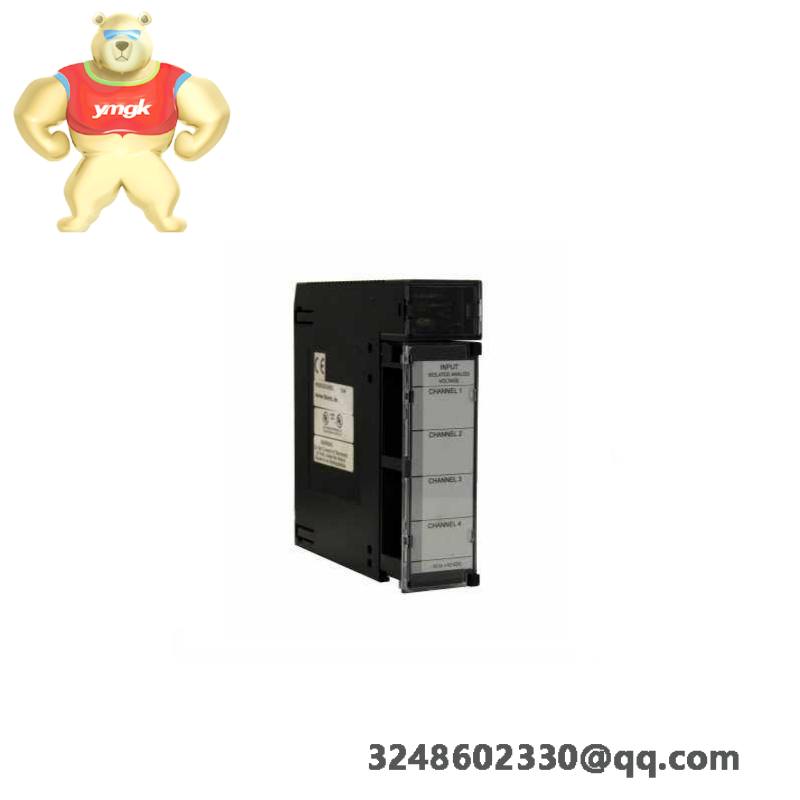

GE HE693RTD600TRTD RTD Input Module

GE HE693RTD600TRTD RTD Input Module

    The GE HE693RTD600TRTD RTD Input Module is a high-performance device designed for industrial environments, offering precise temperature measurements through its advanced RTD technology. Ideal for applications in manufacturing, process control, and energy management systems.

Product Model:HE693RTD600

Manufacturer:GE Fanuc

Altitude:Maximum of 2000 Meters

Channel Type:Single-Ended

Common Mode Rejection:>100 dB, 50/60 Hz

Excitation:150 µA

Isolation Level:500 Vrms at 50/60 Hz

Lead Resistance:Maximum of 50 Ohms

Operating Temperature Range:-40 to 75°C

Weight:224 grams

    The GE HE693RTD600TRTD RTD Input Module is a critical component for monitoring temperature in industrial settings. Designed with precision and reliability in mind, this module supports both two-wire and three-wire configurations for flexible installation options.

    Its single-ended channel design ensures efficient data collection, while the high common mode rejection ratio (>100 dB) minimizes interference from external sources, ensuring accurate readings.

    With a wide operating temperature range (-40 to 75°C), this module is suitable for deployment in diverse environments, from cold storage facilities to hot process lines.

    This module features robust isolation capability (500 Vrms at 50/60 Hz) and low lead resistance (<50 Ω), making it ideal for environments where electrical noise and signal degradation are concerns.

    Constructed with durable materials, the GE HE693RTD600TRTD RTD Input Module is built to last, providing reliable performance over time. Its compact design facilitates easy integration into existing systems without requiring significant modifications.
