GE IS200VATFG1A Voltage Attenuator Feedback Board for Industrial Automation Control Systems
This Voltage Attenuator Feedback Board is specifically designed for use in GE‘s Mark VI Speedtronic series, providing precise voltage attenuation for AC or DC bridge voltages. It ensures stable and accurate operation of drive systems.
Part Number:IS200VATFG1A
Series:Mark VI
Manufacturer:General Electric
Attenuator Input Max:700 V Peak
Connector Type:J1 and J2
Board Size:Customizable
Hardware Revision:Rated at ‘A’
Test Points:Multiple
Terminals:Eight

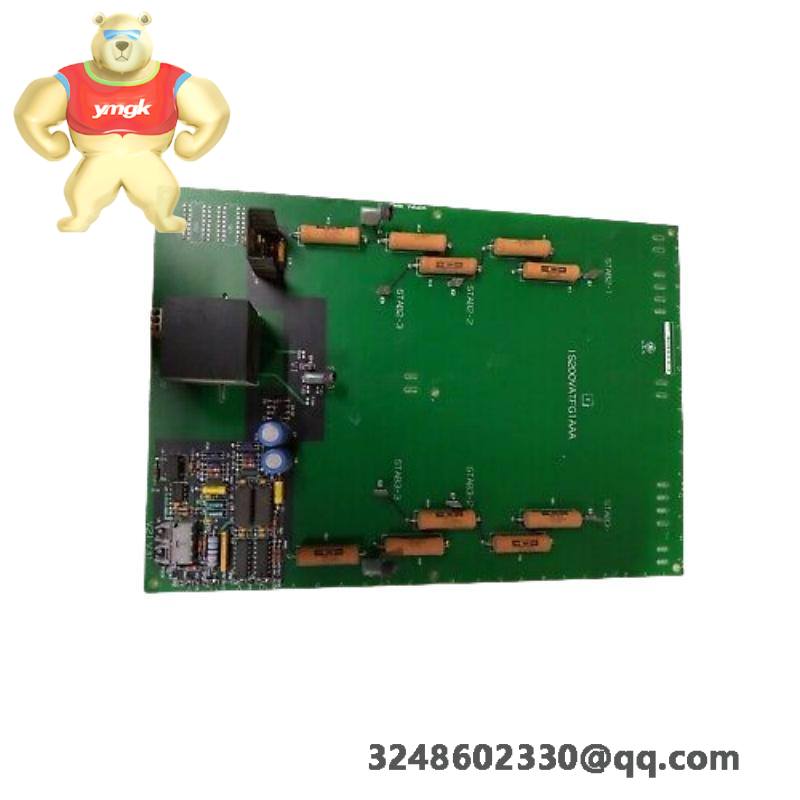

The IS200VATFG1A is an advanced Voltage Attenuator Feedback Board engineered by General Electric for the Mark VI Speedtronic series. This board specializes in attenuating AC or DC bridge voltages, contributing to the stability and accuracy of drive systems.
It is equipped with two high-frequency power supply connectors labeled J1 and J2, enabling efficient power input and return. The design includes eight terminals numbered with SC prefixes, allowing for versatile cable attachments and connections.
The board is manufactured with precision resistors arranged in two identical strings, each offering a range of voltage inputs through stab-on connectors. Users can connect one, two, three, or five resistors as needed, providing flexibility and adaptability to various operational requirements.
This model is a refined version of its predecessor, featuring significant hardware modifications and customizations via a series of jumpers. These enhancements improve the board’s performance and reliability in industrial applications.
Designed for seamless integration into existing systems, the IS200VATFG1A ensures reliable operation and minimal downtime. Its robust construction and stringent quality control measures guarantee longevity and consistent performance under demanding industrial conditions.
