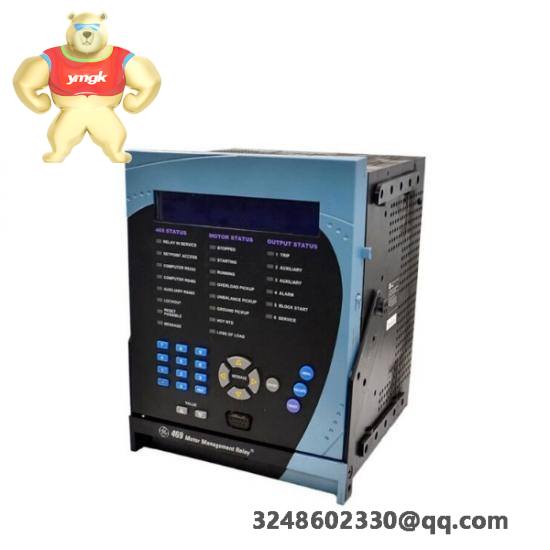

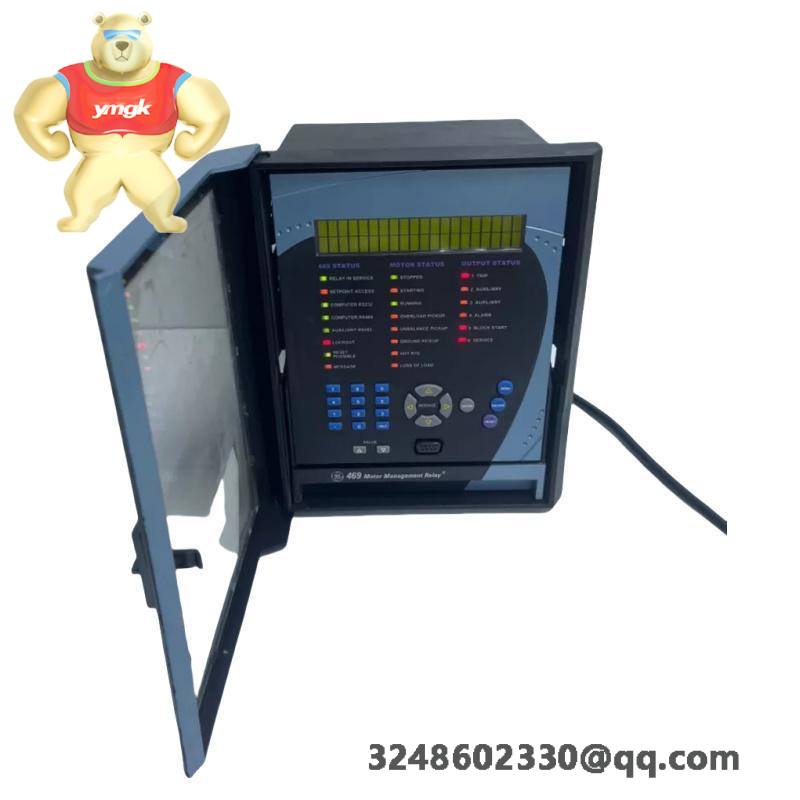

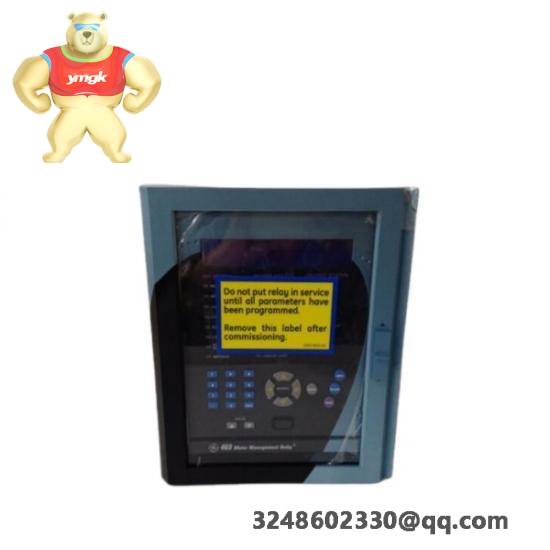

GE SR469-P5-HI-A20 High Voltage Plant Working and Standby Branch Control
The GE SR469-P5-HI-A20 is a sophisticated motor management relay designed for high voltage industrial applications, offering comprehensive protection and control functionalities for working and standby branches within power plants.
Manufacturer:General Electric
Model Number:469-P5-HI-A20
RTD Inputs:Multiple RTD inputs for temperature monitoring (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)
Voltage Range:90 – 300 Volt DC, 70 – 265 Volt AC
Analog Outputs:4 Analog Outputs (4 to 20 mA)
Current Ratings:Phase CT Secondaries: 5A
Protection Rating:ENCLOSURE RATING: 20-X
Frequency Range:48-62 Hz
Environmental Protection:Conformal Coating for harsh environments
Ethernet Connectivity:Ethernet (10Base-T)
The GE SR469-P5-HI-A20 is equipped with advanced monitoring capabilities, including multiple RTD inputs for precise temperature measurement, which helps in determining the actual temperature and the hottest point in motor systems. This feature ensures optimal performance and safety, preventing overheating and potential failures.
Designed with an enhanced front panel, the relay offers a clear and intuitive interface, allowing for easy configuration and operation. Its robust construction withstands harsh industrial environments, ensuring reliable performance under varying conditions.
This motor management relay supports 5CT secondaries, providing versatility for different motor control scenarios. It’s compatible with a wide range of motor types and can be easily integrated into existing systems, facilitating seamless installation and maintenance.
With its compact yet powerful design, the GE SR469-P5-HI-A20 reduces downtime and enhances operational efficiency. Its ability to handle high voltages and currents makes it suitable for heavy-duty applications where reliability is critical.
Manufactured by General Electric, a leader in industrial solutions, this relay is backed by extensive research and development, ensuring top-quality performance and longevity. It’s an ideal choice for engineers and maintenance teams seeking advanced motor management technology.
