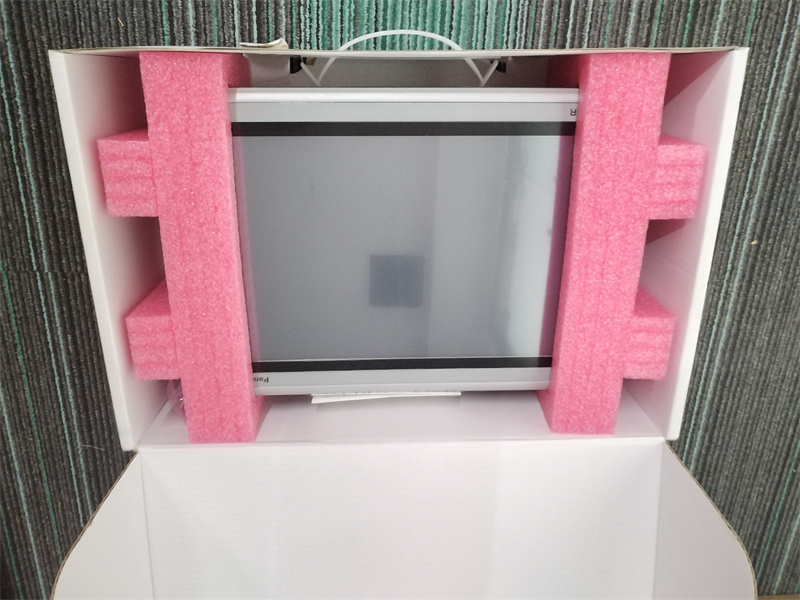

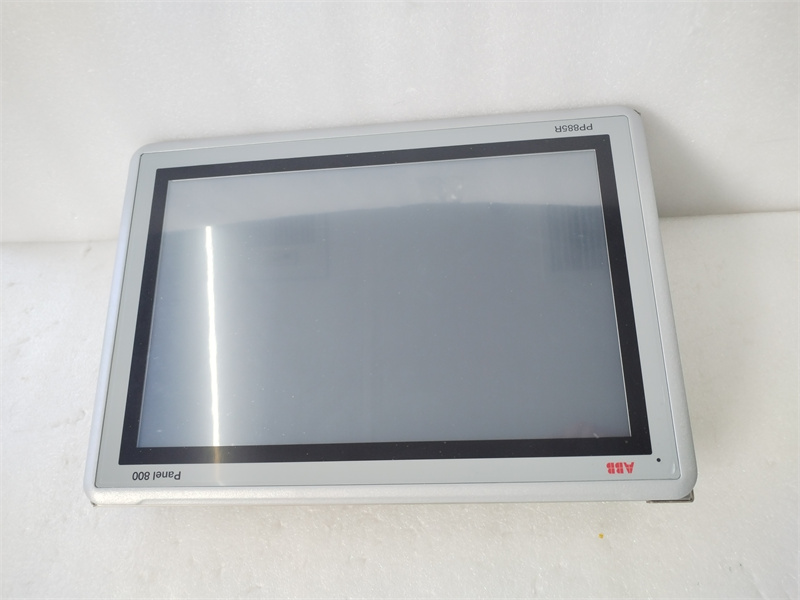

New 3BSE069296R1 PP885R Industrial Touch Screen

ABB’s 3BSE069296R1 PP885R industrial touch screen is a high-performance human-machine interface (HMI) designed specifically for industrial automation environments, belonging to the ABB PP series of operation panels. The following is a detailed analysis of its core parameters, functional characteristics, and application scenarios:
Core parameters and technical specifications
Display Properties
Screen size: 8.4 inches (diagonal), TFT color LCD screen.
Resolution: 800 × 600 pixels, supporting 65536 color display.
Brightness: Typical value of 400 cd/m ² (high brightness design, suitable for strong light environments).
hardware performance
Processor: 32-bit RISC processor (fast response, supports complex graphics rendering).
Memory:
Flash storage: 128MB (for operating system and user programs).
RAM: 64MB (running memory, supports multitasking).
Extension interface:
Communication ports: 1 x RS-232/485 (configurable), 1 x Ethernet (supports Modbus TCP, Profinet).
USB interface: 1 x USB 2.0 (used for program download and data backup).
Expansion slot: Supports SD card (used for storing historical data or program updates).
Environmental adaptability
Protection level: IP65 (front panel), IP20 (back, requires protective cover for harsh environments).
Working temperature:- 20 ° C to 60 ° C (wide temperature design, suitable for extreme temperatures).
Shock/Vibration Resistance: Compliant with IEC 60068-2-6/27 standard (applicable to mechanical vibration scenarios).
Electrical characteristics
Power input: 24V DC (supports redundant power supply).
Power consumption: Typical value of 15W (≤ 20W when backlight is fully turned on).
Isolation level: 1500V AC isolation between power supply and communication port.
Key functional features
Multi protocol support
Compatible with mainstream industrial protocols such as Modbus RTU/ASCII/TCP, Profinet IO, EtherNet/IP, etc.
It can be directly connected to ABB AC800M PLC, AC500 PLC or third-party controllers (such as Siemens S7-1500).
User friendly design
Supports dual operation mode of touch screen and physical buttons (suitable for glove operation).
Provide ABB Compact HMI software (based on IEC 61131-3 standard, supporting custom graphical interface).
Support multi language switching (Chinese, English, German, etc.).
Diagnosis and Maintenance
Built in self diagnostic function (detecting screen faults, communication interruptions, memory errors).
Support remote access (HMI status monitoring and program updates through Ethernet).
safety certification
Compliant with international safety standards such as CE, UL, FCC, IEC 61131-2, etc.
Optional explosion-proof certification version (applicable to ATEX Zone 2 or IECEx zones).
Typical application scenarios
Process control monitoring
Display process flow diagram and real-time data (such as temperature, pressure, flow rate).
Control the start and stop of pumps, valves, and motors (triggering PLC programs through HMI).
Mechanical equipment operation
Integrated into CNC machine tools and packaging production lines, providing parameter settings and status feedback.
Support formula management (storing multiple sets of process parameters and quickly switching production modes).
Energy management interface
Monitor the status of the power grid, frequency converter parameters, and optimize energy efficiency.
Support SCADA system integration (as a local operating terminal).
User core focus points
software compatibility
ABB Compact HMI software (version matching hardware) is required for configuration.
Support importing CAD drawings or Excel spreadsheets to quickly generate interfaces.
Installation and wiring
Adopting VESA 75mm standard mounting holes, supporting panel or bracket installation.
It is recommended to use shielded twisted pair cables to connect communication ports to avoid electromagnetic interference.
Maintenance and Upgrade
Regularly calibrate the touch screen (automatically calibrated through software tools).
Firmware can be updated via USB or Ethernet (the latest version needs to be downloaded from ABB’s official website).
Alternative and upgrade suggestions
Alternative models: If a larger screen size is required, PP915R (10.4 inches) or PP935R (12.1 inches) can be selected.
Function extension: Add ABB CP600 communication processor to support more protocols (such as DNP3, OPC UA).
Redundant design: Optional redundant power modules or dual HMI hot standby systems are available to enhance reliability.
