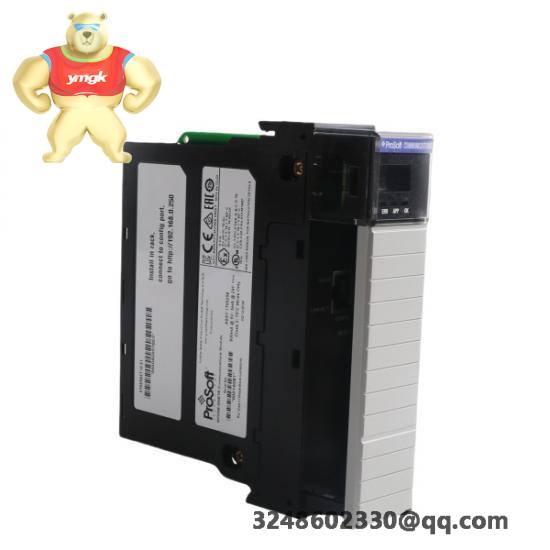

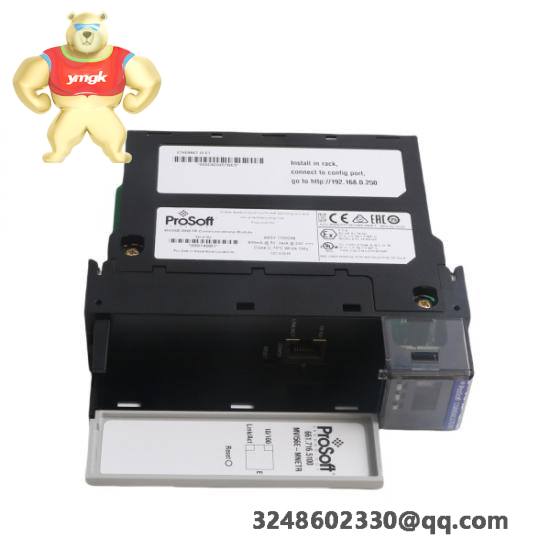

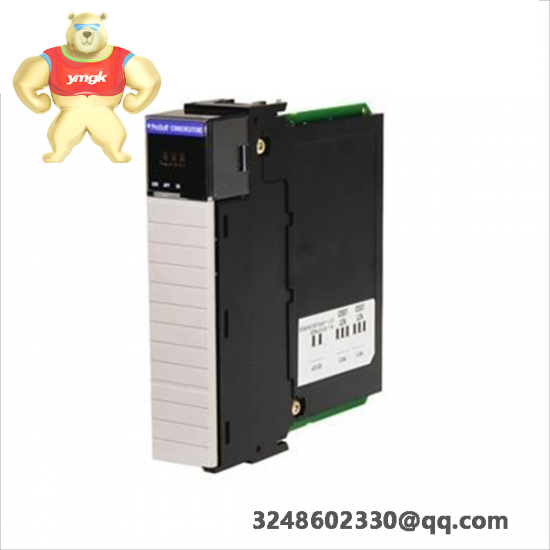

PROSOFT MVI56E-MNET Network Interface Module – Enhanced Communication for Industrial Automation
The PROSOFT MVI56E-MNET Network Interface Module supports up to 30 clients and 20 servers, providing faster response times for multi-server applications. It minimizes the impact on other server communications when one server device goes offline, ensuring reliable operation.
Product ID:MVI56E-MNET
Compatibility:Backward-compatible with previous MVI56-MNETR versions and Single-Slot ControlLogix backplane compatible
Network Speed:10/100 Mbps auto crossover detection
Supported Devices:Up to 30 Clients and 20 Servers
Operating Voltage:220 V
Output Frequency:30 kHz
Certifications:Meets EN60079-0 and EN60079-15 standards for hazardous locations
Memory Mapping:User definable module data memory mapping of up to 5000, 16-bit registers
Diagnostics:CIPconnect-enabled network configuration and diagnostics monitoring
The PROSOFT MVI56E-MNET Network Interface Module is designed for enhanced communication in industrial automation systems.
It seamlessly integrates with RSLogix™ 5000 using a supplied Add-On Instruction (AOI) or ladder file, eliminating the need for additional PAC/PLC programming.
With support for up to 30 clients and 20 servers, this module ensures fast response times and minimal impact on other server communications.
Its backward compatibility allows for an upgrade from earlier MVI56-MNET modules without changing existing ladder logic programs or module configurations, making it a flexible and cost-effective solution.
Furthermore, its compatibility with ControlLogix systems and CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules make it a powerful tool for system integration and remote rack implementations.
