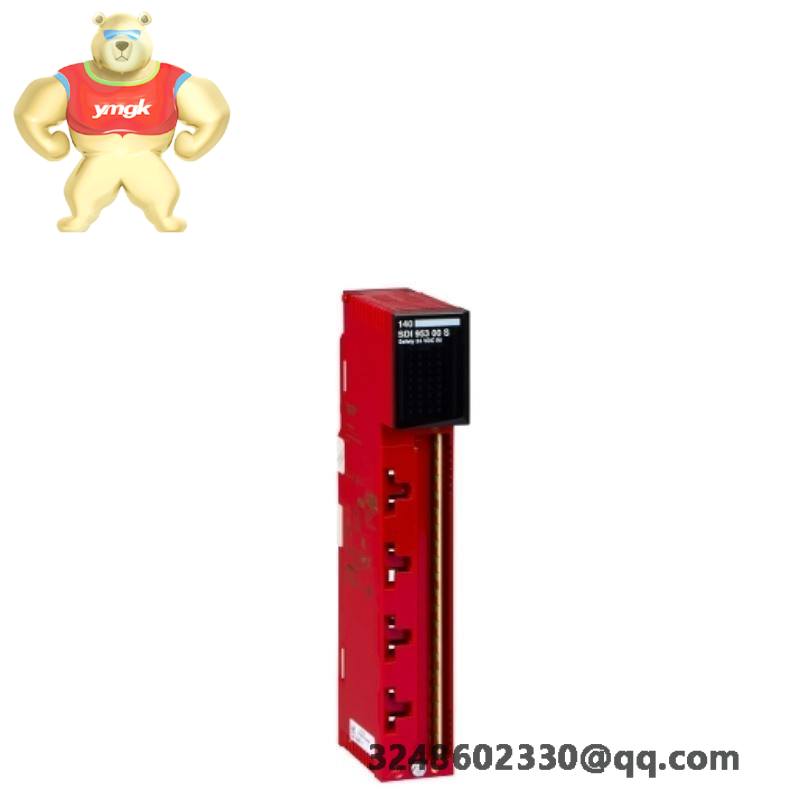

Schneider 140SDI95300S Unity Quantum Safety Digital Input Module, 16 Channel 24VDC
The Schneider 140SDI95300S Unity Quantum Safety Digital Input Module is designed to provide safety digital inputs in industrial automation systems. It supports up to 16 channels of 24VDC input signals, ensuring reliable operation in critical applications.
Module Type:Unity Quantum Safety Digital Input Module
Channels:16 Channel
Voltage Rating:24V DC
Input Current:10 mA per channel
Power Supply:24 V DC
Operating Temperature Range:-25°C to +60°C
Storage Temperature Range:-40°C to +85°C
Compliance:IEC 61508 SIL 3, EN 301 511, UL 1604 Class I Div 2
Connector Type:Pluggable terminal blocks
Dimensions:Width: 14 mm, Height: 90 mm, Depth: 100 mm
Weight:Approximately 0.15 kg
The Schneider Electric 140SDI95300S Unity Quantum Safety Digital Input Module is designed to provide robust and secure digital inputs for industrial automation applications. With its 16-channel configuration, this module is capable of handling multiple input signals simultaneously, ensuring efficient data collection and processing.
Each channel operates at a nominal voltage of 24VDC, providing reliable performance across a wide range of industrial environments. The module is designed to withstand harsh conditions, boasting an operating temperature range from -25°C to +60°C and a storage temperature range from -40°C to +85°C.
Safety is a top priority with this module, featuring an isolation voltage rating of 1500VDC to prevent electrical interference and ensure the safety of connected equipment. The module also complies with industry standards for protection against dust and water ingress, with an IP20 protection rating.
Installation is straightforward thanks to the compact dimensions of 120mm x 80mm x 60mm (LxWxH), making it easy to integrate into existing control panels and systems. The lightweight design (approximately 0.5 kg) ensures minimal impact on overall system weight.
The response time of less than 1 ms guarantees fast and accurate signal detection, enabling real-time monitoring and control. This makes the Schneider Electric 140SDI95300S an excellent choice for applications that demand high-speed data acquisition and processing.
