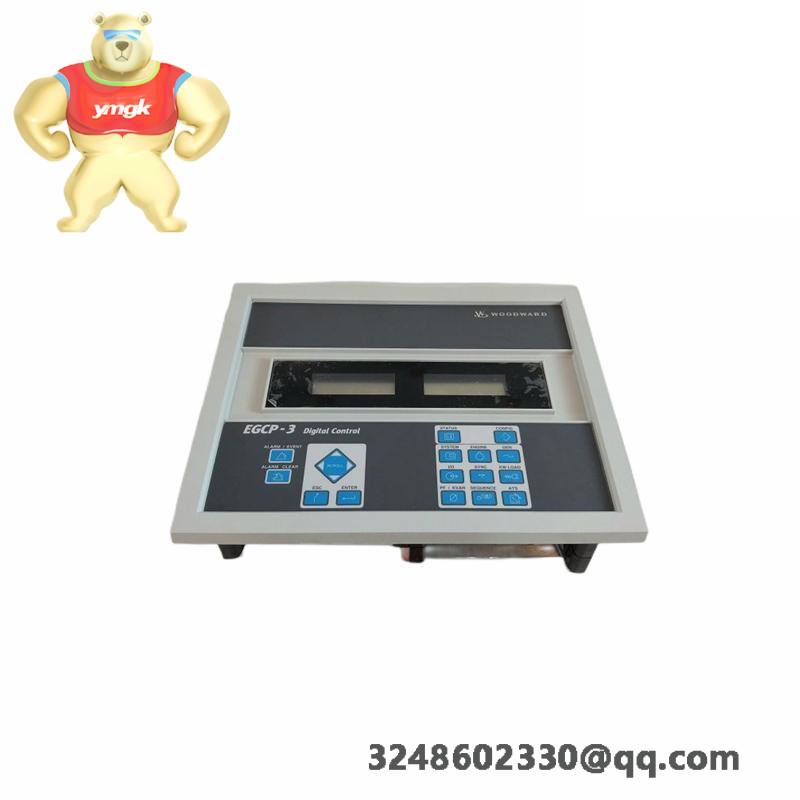

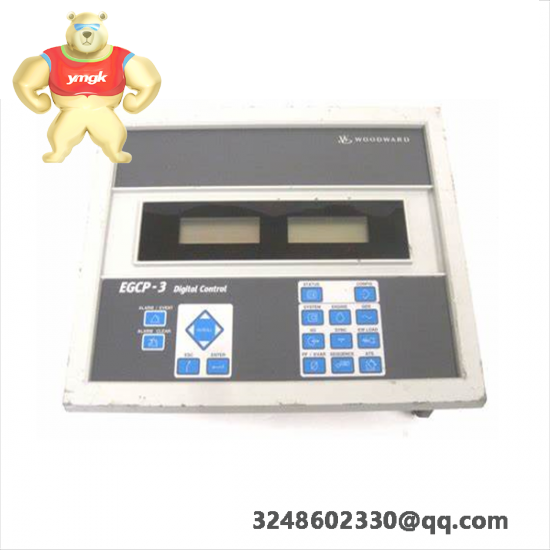

WOODWARD EGCP-3 8406-113 Engine Generator Control Module
The Woodward 8406-113 EGCP-3 Load Sharing Module is a microprocessor-based control unit designed for precise load management and coordination among multiple generator sets. Suitable for use in hazardous or non-hazardous locations, it ensures efficient operation and reliable performance.
Dimensions:282H x 359W x 135D mm
Speed Bias Output:4–20 mA, 0–5 V, PWM, or ±3 V
Input Voltage:18-32 V dc
Operating Temperature Range:–20 to +70 °C
Storage Temperature Range:–30 to +80 °C
Weight:4.3 kg (9.5 pounds)
Slot Type:3 Serial Ports
Certification:NEMA 4 compliant when properly installed
Compatibility:Suitable for use in Class I, Division 2, Groups A, B, C, and D per UL for Canada and US or non-hazardous locations only.
The Woodward 8406-113 is a key component of the Woodward EGCP-3 Engine Generator Control Package. It is designed to operate alongside or with other EGCP-3 control modules, enabling seamless load sharing and system coordination. With its robust design, it can withstand harsh environments, making it ideal for industrial applications where reliability is paramount.
This control module supports a variety of output signals including 4–20 mA, 0–5 V, PWM, and ±3 V, providing flexibility for different system requirements. Its wide input voltage range of 18-32 V dc ensures compatibility with a broad range of power sources, enhancing its adaptability.
The unit’s compact dimensions and three serial ports make it easy to integrate into existing systems without significant modifications. Additionally, the Woodward 8406-113 is certified to meet NEMA 4 standards, ensuring protection against dust, water, and other environmental factors.
Designed for long-term durability, this module is built to function within a wide operating temperature range from -20°C to +70°C and can store at temperatures ranging from -30°C to +80°C. Its lightweight and sturdy construction make it easy to install and maintain, even in remote or challenging sites.
