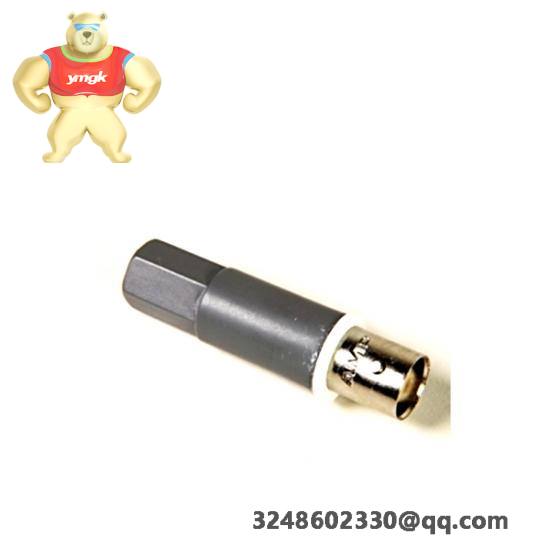

A-B 1786-TCAP ControlNet Media Dummy Load Connector
The Allen-Bradley 1786-TCAP ControlNet Media Dummy Load Connector is designed to simulate a load for testing purposes in ControlNet networks, ensuring the integrity and reliability of your industrial control systems.
Manufacturer:Rockwell Automation
Model Number:1786-TCAP
Connector Type:RJ45
Compatibility:ControlNet Networks
Impedance:100 Ohms
Operating Temperature Range:-40°C to +85°C
Voltage Rating:30VDC Max
Material:High-Quality Plastic
Color:Gray
Weight:0.05 lbs
Dimensions:3.5 x 1.5 x 1 inches
The AB 1786-TCAP ControlNet Media Dummy Load Connector is a high-performance termination device for ControlNet networks, designed to maintain signal integrity and enhance network reliability.
Crafted from durable high-grade thermoplastic, this connector is built to withstand harsh industrial environments, withstanding operating temperatures ranging from -40°C to +85°C.
Its RJ45 design ensures easy integration with standard network infrastructure, providing a consistent impedance of 100 ohms across its frequency range up to 10 MHz.
This connector is rated for voltages up to 30V AC/DC, making it suitable for a wide range of industrial applications.
The grey color coding facilitates quick identification on the network, contributing to efficient system maintenance and troubleshooting.
