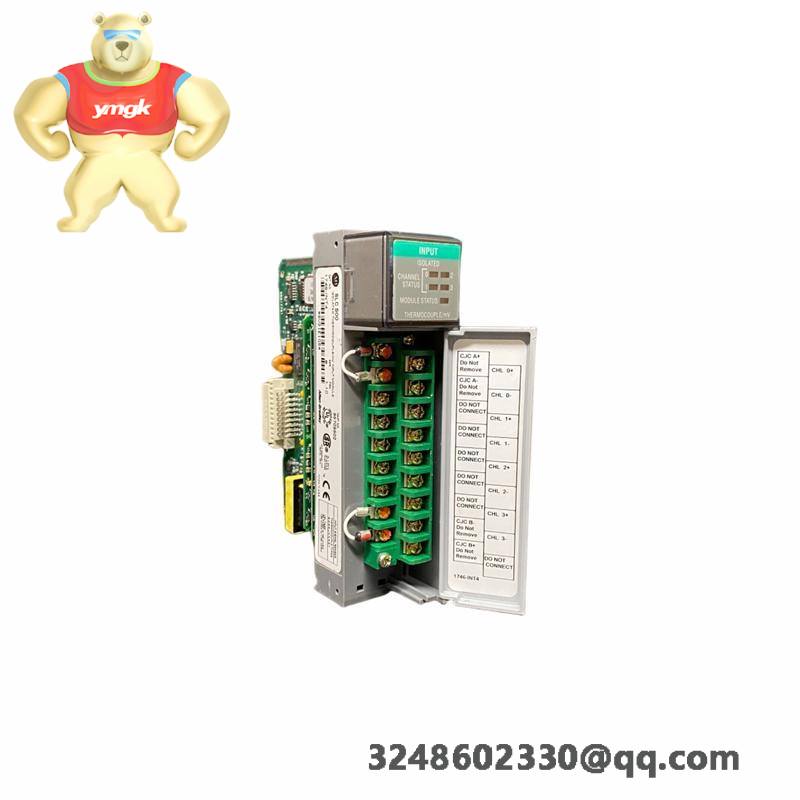

AB 1746-INT4 Analog Input Module for Industrial Automation
The Allen-Bradley 1746-INT4 is a high precision analog input module designed for industrial automation applications. It offers reliable signal conversion and is essential for monitoring and controlling processes in manufacturing environments.
Manufacturer:Allen Bradley
Model Number:1746-INT4
Module Type:Analog Input Module
Number of Channels:4
Input Voltage Range:-20 to +20 VDC
Input Current Range:-30 to +30 mA
Resolution:12-bit
Accuracy:+/-0.1% F.S.
Isolation:Galvanic isolation
Backplane Current Draw:35 mA at 5 V, 85 mA at 24 V
Operating Temperature:-25°C to +70°C
This Allen-Bradley 1746-INT4 Analog Input Module is engineered to provide reliable and precise measurement of analog signals in demanding industrial environments. With its high-resolution capabilities and robust design, it ensures accurate data acquisition, which is essential for optimal control and monitoring in automation systems.
The module supports four channels, each capable of handling analog inputs ranging from -20 to 20 mA and ±10 VDC. Its overvoltage protection feature safeguards against unexpected voltage spikes, ensuring long-term reliability and minimal maintenance.
Designed with a focus on user-friendliness and compatibility, the 1746-INT4 module integrates seamlessly with Allen-Bradley’s SLC500 series controllers. It is built to withstand the rigors of industrial settings, featuring a compact and durable enclosure that protects against dust, moisture, and mechanical shocks.
Installation and configuration are straightforward thanks to the module’s clear labeling and intuitive design. Users can easily connect it to existing systems, making it an ideal choice for those looking to enhance their automation infrastructure without significant downtime or disruption.
This Allen-Bradley analog input module comes with comprehensive documentation and technical support, providing users with the necessary resources to maximize performance and efficiency. Whether you’re upgrading an existing system or implementing a new one, the 1746-INT4 is a reliable and versatile addition to your automation toolkit.
