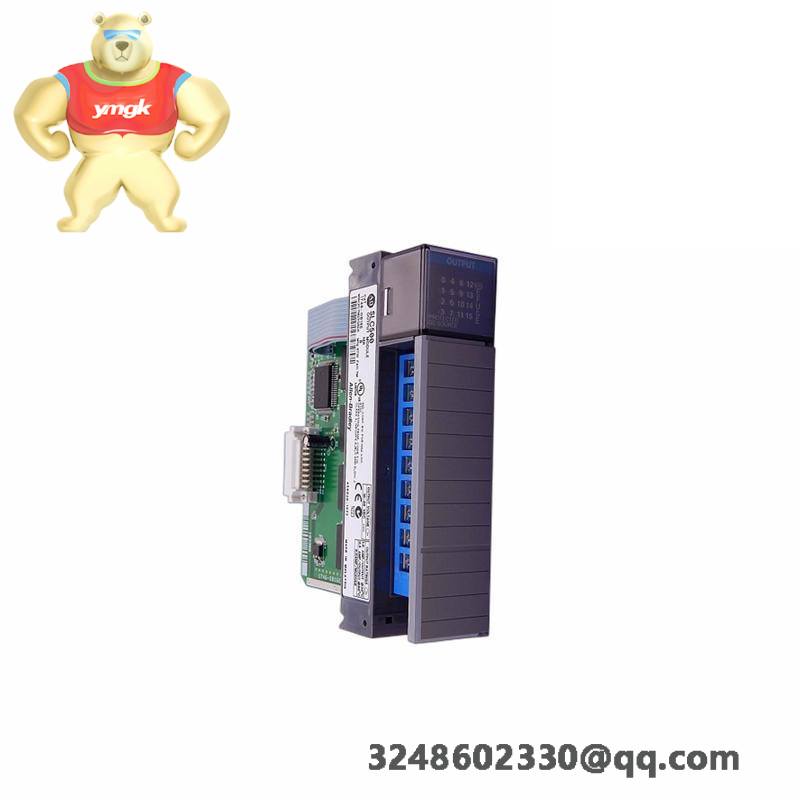

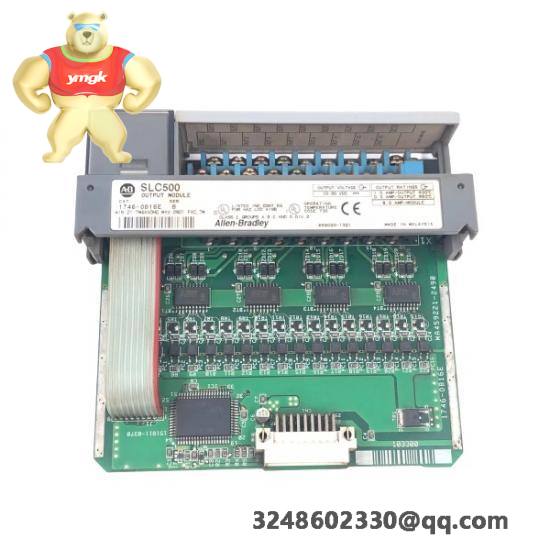

AB 1746-OB16E Digital Output Module
The AB 1746-OB16E Digital Output Module is designed for industrial automation systems, offering reliable and efficient digital outputs for control applications. This module is ideal for various industries including manufacturing, process control, and building automation.
Model Type:SLC500
Model Number:1746-OB16E
Manufacturer:Allen Bradley
Number Of Channels:16
Input Voltage:24 VDC
Output Voltage:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Communication Circuit Isolation:500 VDC
Backplane Isolation:1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The A-B 1746-OB16E is a highly reliable and robust Digital DC Output Module designed by Allen Bradley for industrial control applications. This module supports up to 16 channels, offering precise control over outputs which are essential for automating processes in manufacturing facilities.
With its ability to handle input voltages ranging from 10 to 50 VDC, this module ensures compatibility with a wide range of devices and systems. Its low on-state voltage drop and minimal off-state leakage contribute to energy efficiency and extended operational life.
Featuring an open type enclosure, the module is mounted on a chassis for easy integration into existing setups. Its operating temperature range of 0 to 60°C makes it suitable for use in a variety of environments, ensuring stable performance under different conditions.
Moreover, the module is built to withstand environmental conditions such as humidity levels between 5% and 95%, providing a dependable solution for harsh industrial settings.
