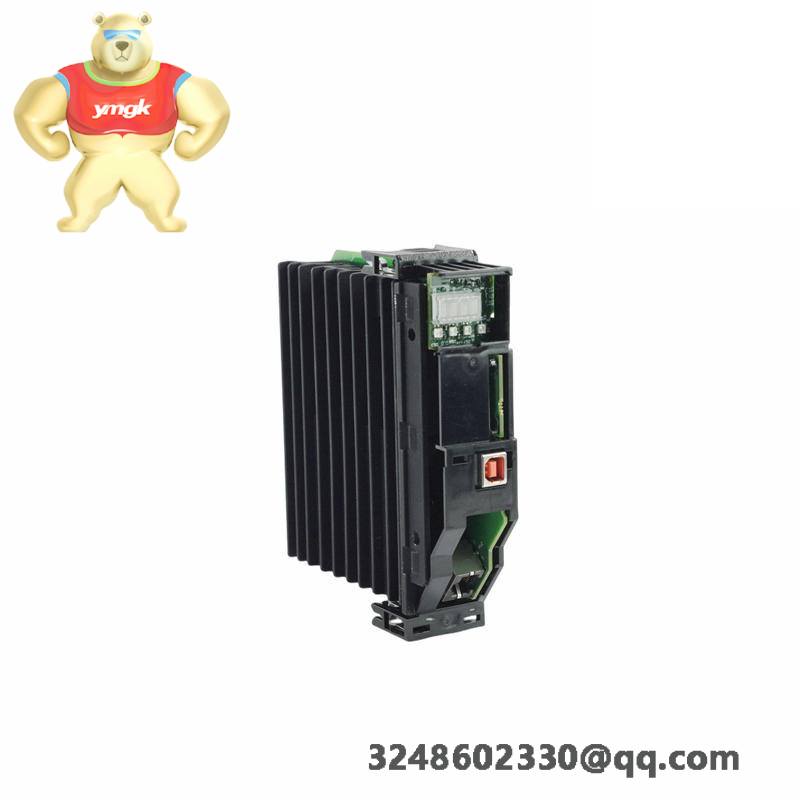

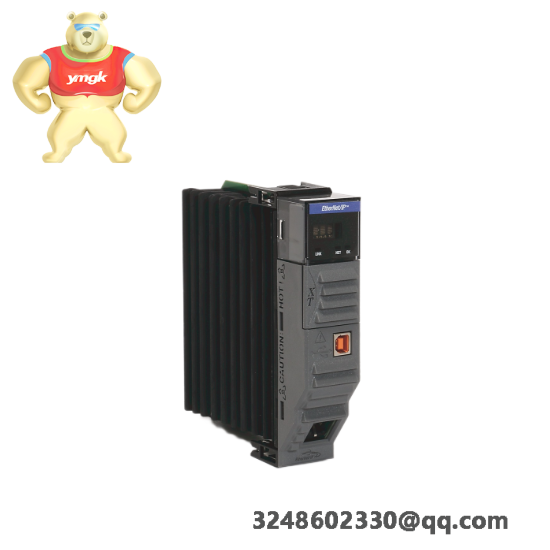

AB 1756-EN2TXT EtherNet/IP Bridge Module

AB 1756-EN2TXT EtherNet/IP Bridge Module

    The AB 1756-EN2TXT EtherNet/IP Bridge Module enables seamless communication between industrial devices and networks. It facilitates high-speed data exchange, enhancing automation processes in manufacturing environments.

Model:1756-EN2TXT

Manufacturer:Allen-Bradley

Communication Protocol:EtherNet/IP Bridge

Power Supply:3 mA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Humidity Range:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet, USB Port

    The Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module is an essential component for integrating industrial devices into Ethernet networks. It provides a robust solution for enhancing communication efficiency and reliability in automation systems. With its high capacity IP module, it supports speeds up to 10/100 MBPS, ensuring quick and reliable data transmission.

    Designed for use in harsh industrial environments, this module can operate within a temperature range of 0 – 60 DEG C and withstand vibrations up to 2 G and shocks up to 30 G. Its enclosure is open type, making it easy to install and maintain while also being shielded from electromagnetic interference.

    This module is equipped with a power supply of 3 MA at 24 VDC, providing consistent power delivery to connected devices. Its isolation capability of 30 V continuous ensures electrical safety and prevents damage to connected equipment due to voltage spikes.

    The A-B 1756-EN2TXT is compatible with Ethernet and USB ports, allowing for flexible connectivity options. It complies with 802.3 standards for shielded or unshielded twisted pair cables, ensuring high-quality signal transmission over long distances.

    For those looking to enhance their industrial network’s capabilities, the A-B 1756-EN2TXT EtherNet/IP Bridge Module is an indispensable choice.
