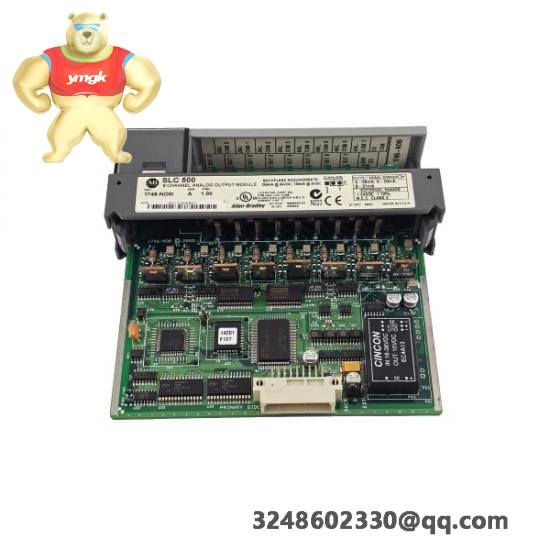

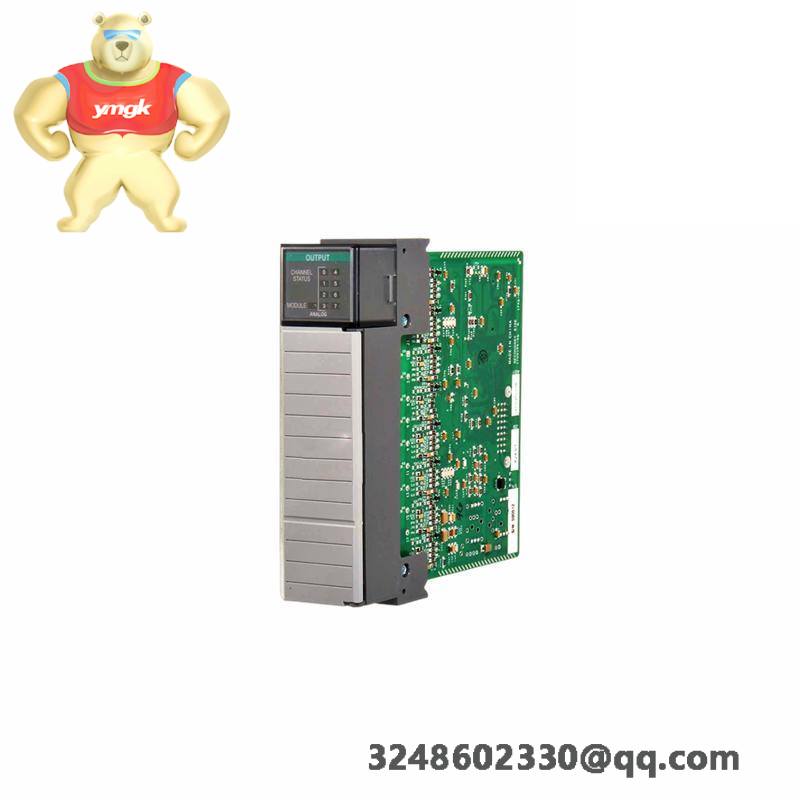

Allen-Bradley 1746-NO8I Analog Output Module
The Allen-Bradley 1746-NO8I Analog Output Module is an essential component for industrial control systems. Designed for use with SLC 500 series PLCs, this module provides 8 channels of analog current output, making it ideal for applications requiring precise control over industrial processes.
Model Type:SLC500
Model Number:1746-NO8I
Manufacturer:Allen Bradley
Module Type:Analog Current Output Module
Number Of Channels:8
Output Range:0 – 21.5 mA
Operating Voltage:24 VDC Plus/Minus 10%
Minimum Output Current:300 mA
Current Output Ranges:4 – 20 mA, 0 – 20 mA, 0 – 21 mA, 0 – 21.5 mA
Current Rating:Backplane: 120 mA at 5 VDC, 250 mA at 24 VDC (J4 Jumper Set To Rack), 0 mA at 24 VDC (J4 Jumper Set To EXT)
Isolation:Backplane: 500 VDC
Enclosure:Open Type
Display:Status LED
Connection Cables:24 – 14 AWG
Mounting:Chassis
The A-B 1746-NO8I Analog Current Output Module is a high-performance device specifically designed for industrial automation processes. With its 8 channels, it allows for precise and reliable analog current output, ensuring optimal control in various manufacturing scenarios. The module operates within a voltage range of 24 VDC ± 10%, providing a robust performance under diverse conditions. Its output ranges from 0 to 21.5 mA, catering to a wide array of application needs. Equipped with a status LED display, it offers real-time monitoring capabilities, enhancing system reliability. The A-B 1746-NO8I is compatible with standard connection cables, facilitating easy installation and maintenance. Moreover, its open-type enclosure design ensures efficient heat dissipation, prolonging the module’s lifespan. Ideal for use in challenging industrial settings, this module stands out for its precision, durability, and ease of integration.
