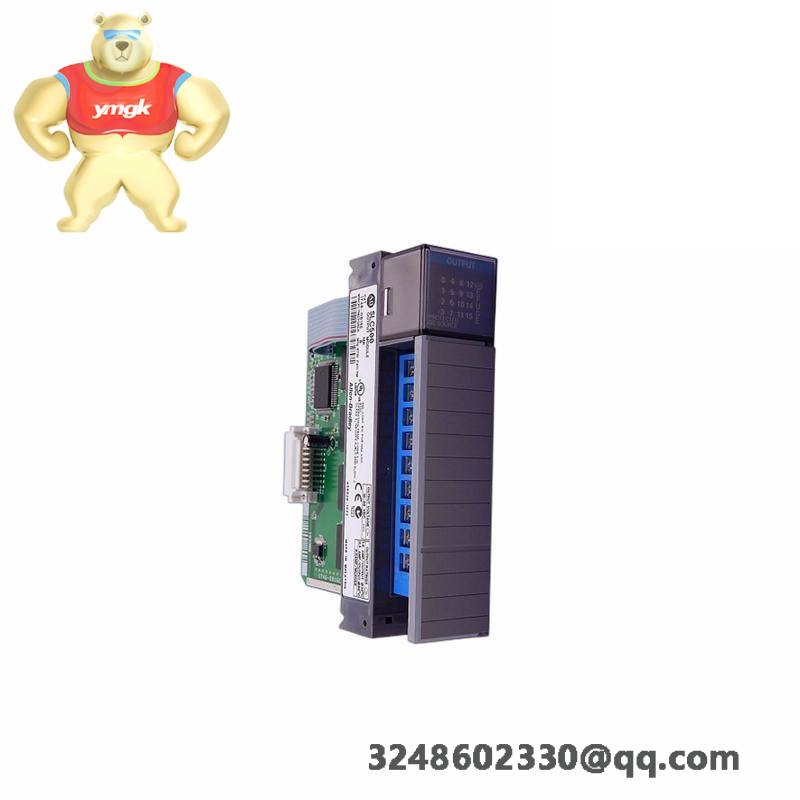

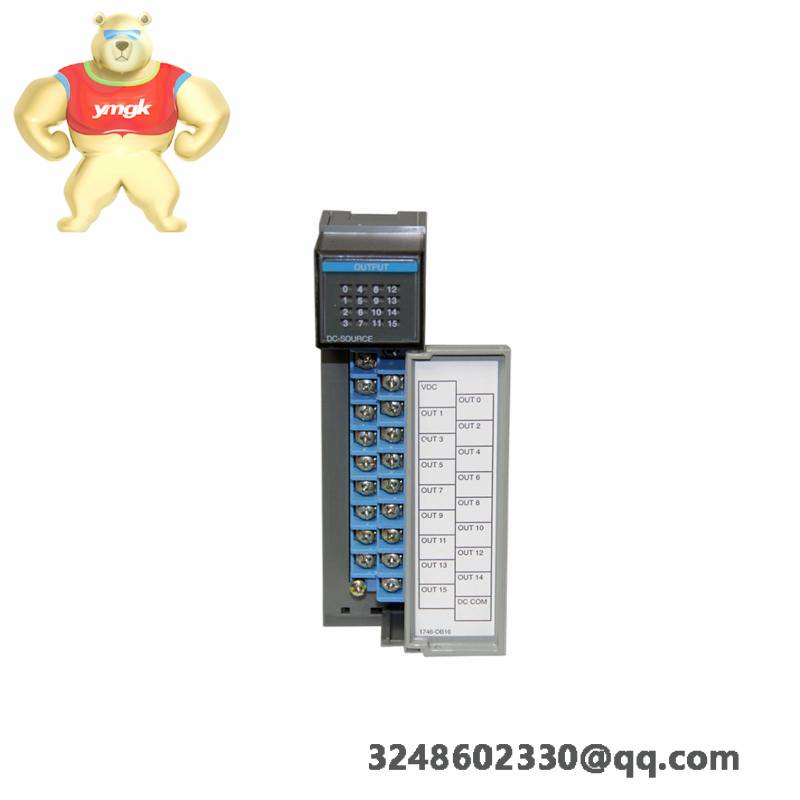

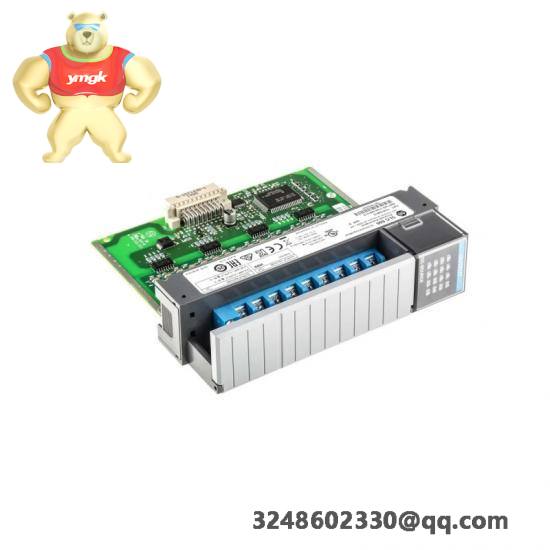

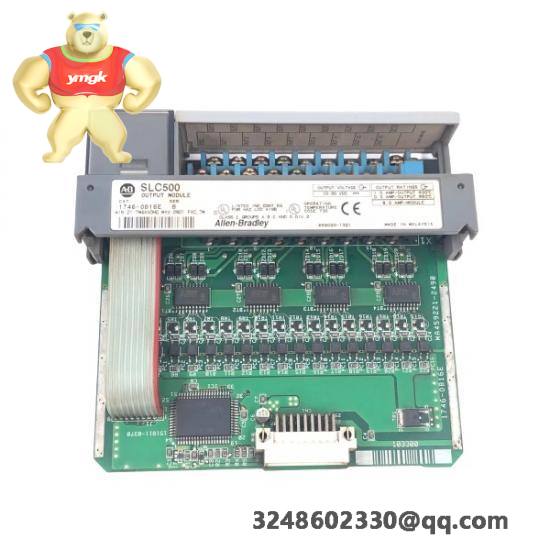

Allen-Bradley 1746-OB16 Digital DC Output Module
The A-B 1746-OB16 is a high-performance digital direct current output module designed for industrial automation systems. It provides reliable and efficient control for various industrial applications, making it an essential component for any manufacturing setup.
Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Number Of Channels:16
Input:24 VDC
Output:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
The Allen-Bradley 1746-OB16 Digital DC Output Module is designed for industrial automation systems that require reliable and precise digital control. This module offers 16 channels of digital output, making it suitable for a wide range of applications including process control, machine control, and factory automation. With an input voltage of 24 VDC and output voltage ranging from 10 to 50 VDC, this module ensures consistent and accurate performance across various operating conditions. The low on-state voltage drop and high off-state leakage protection enhance the reliability of the module. Its open-type enclosure and chassis mounting design make installation straightforward and flexible. Operating within a temperature range of 0 to 60 degrees Celsius, this module can withstand harsh industrial environments while providing stable operation. The Allen-Bradley 1746-OB16 is a robust and dependable solution for any industrial automation project.
